Skr 819 Tv Av Hdmi Vga Usb Led

Presenting the most futuristic product, sophistication and flexible models. SKR.819 TV/AV/HDMI/VGA/USB LED Controller Board for 32 inch LED Glass Screen Panel replace TP.VST59.PB819/818//TP.V56C.PB819/816 is extremely clean and luxury design, type and building. Has actually made from top quality materials, this product can serve and bring full taste happy and satisfy feeling. It is very sophisticated, modern-day trendy and inexpensive. It produces beautiful design and toughness. It is really simple to utilize with a basic guidebook, easy to maintenance, easy to clean and easy to location. You will get very excellent quality for reasonable cost. All functions are 100 % functionally. Everyone who purchases and uses this product will certainly rejoice and satisfies. It will not disappoint as the product for quality and rate.

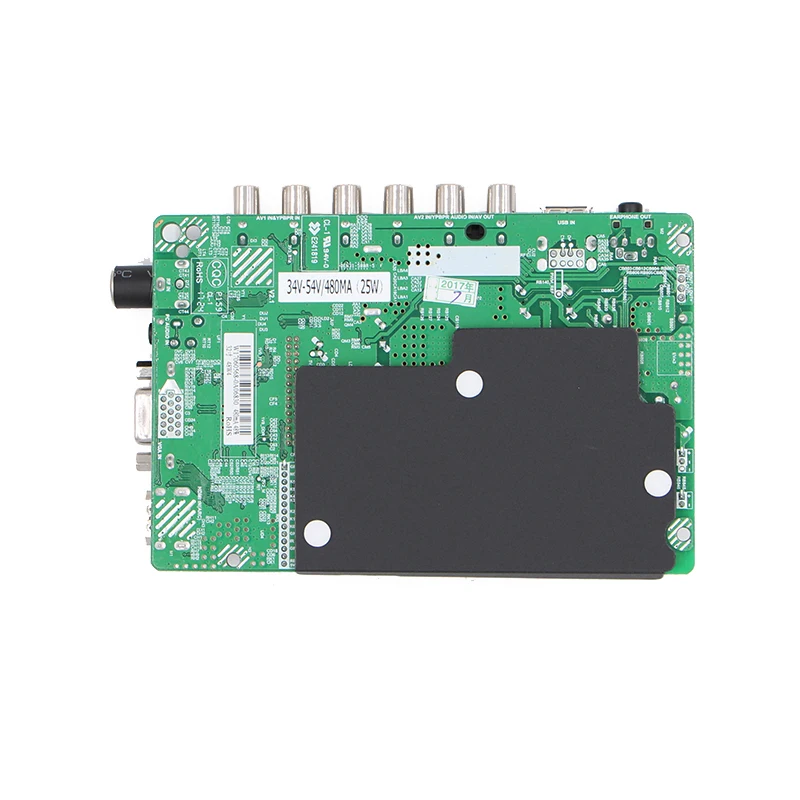

SKR.819 TV/AV/HDMI/VGA/USB LED Controller Board for 32 inch LED Glass Screen Panel replace TP.VST59.PB819/818//TP.V56C.PB819/816

Volume Retail sales: 39 orders ++

Product Rating:4.8

Original Price:19.26/us

variation A:

variation B:

Unit Type: piece

Package Weight: 0.3kg (0.66lb.)

Package Size: 8cm x 5cm x 10cm (3.15in x 1.97in x 3.94in)

Unit Type: piece

Package Weight: 0.3kg (0.66lb.)

Package Size: 8cm x 5cm x 10cm (3.15in x 1.97in x 3.94in)

Item specifics
  • Model Number:SKR.819
  • Type:Analog
  • FTA(Free To Air):Yes
  • Brand Name:Agoal
  • High Definition:Yes
  • With USB Wifi:No
  • Package:No
Gallery Image
image thumnail (1)
image thumnail (2)
image thumnail (3)
image thumnail (4)
image thumnail (5)
image thumnail (6)
SKR.819 TV/AV/HDMI/VGA/USB LED Controller Board for 32 inch LED Glass Screen Panel replace TP.VST59.PB819/818//TP.V56C.PB819/816 is easy to upkeep and setup. In generally, this product looks great and has various designs and design from the previous one, the finest product on the market. It has been upgrading with contemporary design. For the expense, it is very cost reliable spending plan. It is a high-quality product at an affordable cost from trusted brand name on the planet.
Products Descriptions

Description:

Model: SKR.819
Scheme of the chip:
Input Interface: VGA / HDMI / TV / AV / USB multimedia playing
Input Voltage: AC IN 220V
Screen interface: LVDS Single 8 , Double8
Screen voltage: 12V
Resolution: Support high screen 1920 * 1080, 32 inch LVDS screen

Burning method: to record the screen program in the USB flash disk, USB flash disk inserted into board, plug in the keypad, electricity; About after a few seconds, press the keypad lights start alternating red and green flash, flash lights began to write programs (please do not power), light in the slow flash first, after a slow flash flash, will speed up the quick flash, long after the last until the lights stop flashing light is the program written, electricity burn with USB flash disk to complete the program.

Not only USB interface can be used to upgrade programs, but also can use to play Moive/music/photo, basically formats are supported. You can also set a boot display pictures or LOGO.

Programming:

1. The screen of the program is copied(.bin file) to the usb drive.
2. Insert USB Flash disk to the USB port on the board
3. Connected to the keypad, electricity again, until you see by the indicator lights on the keypad after flashing in red and green, until after the indicator light flashing, unplug the power, then pull out USB Flash disk, afresh power on.(Note that write programs do not power outages, crashing won't be able to use)

Package included:

1 x SKR.819 Controller Board
1 x Remote Controller

Not include lvds cable and inverter
